reanimate

Reanimate is a reactive framework for creating non-interactive animations from SVG images. This package consists of a set of combinators, a renderer (using ffmpeg), and a web-based previewer. Inline latex code is supported when 'latex' and 'dvisvgm' are installed.

Nothing about the API is stable at this point.

Live coding playground: https://lemmih.github.io/reanimate/

YouTube

Completed animations are uploaded to the Reanimated Science channel.

Animation snippets are uploaded to the Reanimated Science Playground channel.

Getting started

Reanimate ships with a web-based viewer and automatic code reloading. To get a small demo up and running, clone the repository, run one of the examples (this will install the library), and wait for a browser window to open:

$ git clone https://github.com/Lemmih/reanimate.git
$ cd reanimate/examples/
$ ./latex_color.hs

This should render the latex_color example in a new browser window. If you then change the animation source code, the browser window will automatically reload and show the updated animation.

TODO

• website for live coding
• bounding boxes
• Use svg-tree instead of lucid-svg
• crossplatform file watching
• Improve bounding box approximations
• Select desired FPS in web previewer
• Download rendered animations in web previewer
• Alignment and positioning combinators
• Consistent caching framework
• Figure out why performance doesn't scale linearly with more cores
  • diagrams are slow because they are rendered as a bytestring and then parsed as SVG. Find a way to shortcut.
• Test-suite: Compile and render all the example animations on the build servers. The SVG output should be stable.
• API for generating slides.
• Warn if 'group' nodes are found in 'clippath's.
• Driver:
  • Command line options for rendering videos.
  • Flags for selecting fps in web viewer
  • Command for validating tools: latex, dvisvgm, ffmpeg. Warn of old versions of ffmpeg that don't render SVGs correctly.
  • Use GHC.Environment to find own source code.
  • Generate interleaved frames (1fps, 2fps, 4fps, etc)
  • Flag for generating youtube videos (ffmpeg options preset).
• Viewer:
  • Keys for pausing, moving frame-by-frame, resetting.
  • Fix race conditions.

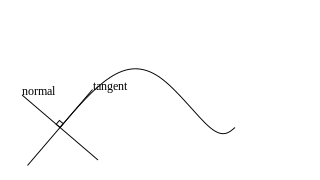

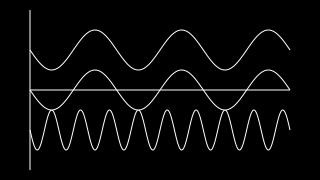

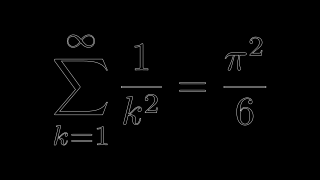

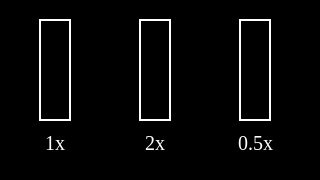

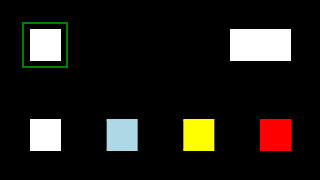

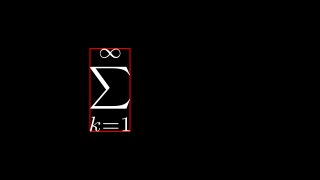

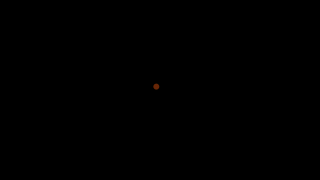

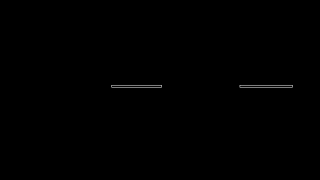

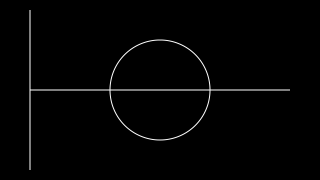

Examples

The example gifs are displayed at 25 fps. The source code for many of these examples are available on the live coding playground.
